How to Choose the Right PTFE Fuel Hose

Choosing a Ptfe Fuel Hose is not just a matter of selecting a diameter that fits. The hose must match the fuel, operating pressure, temperature range, fittings, and movement of the installation. A hose that looks robust on a workbench can still be unsuitable once heat, vibration, and tight bends enter the picture. Details matter.

Fuel-systems engineer Ethan Cole puts the selection principle this way: “Match the hose to the system’s real conditions, not just its advertised pressure rating.” Treat that as a practical reminder, not a substitute for the manufacturer’s specifications. Check the product data for fuel compatibility, pressure and temperature limits, bend radius, and fitting requirements. Then verify that the assembled connection suits the application. A clean-looking crimp is not proof of compatibility.

This guide explains how to compare construction, size, fittings, and installation needs before choosing a Ptfe Fuel Hose. It also highlights questions worth asking suppliers, such as whether the stated rating applies to the hose alone or the complete assembly. Small print can matter. I would not choose by price or appearance alone; that shortcut is tempting, and sometimes wrong. Use documented specifications, inspect the finished routing for abrasion or kinks, and reconsider the choice whenever the system conditions are unclear. Better to pause than guess.

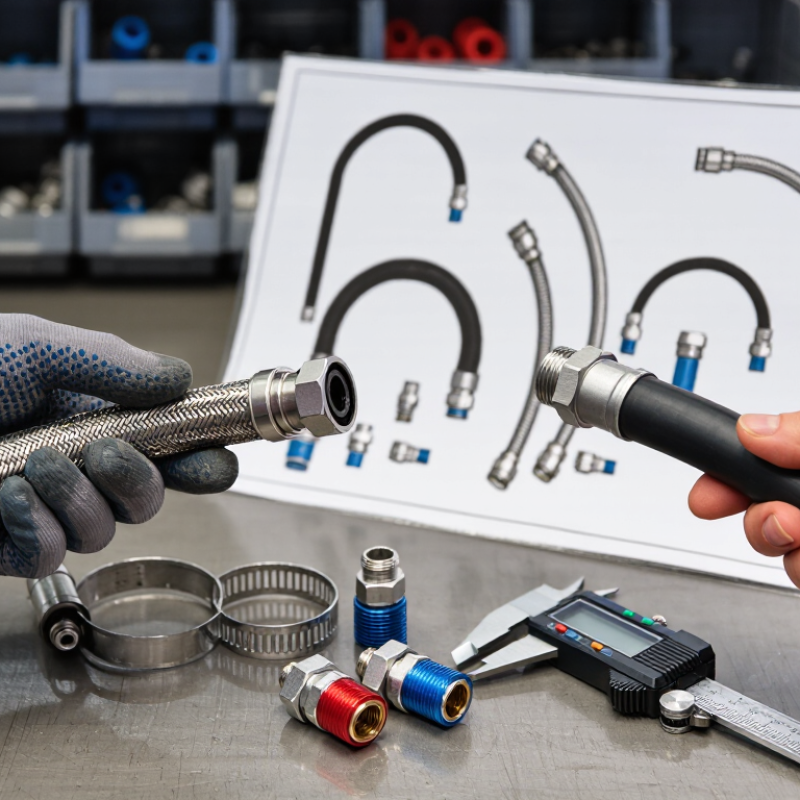

How to Choose the Right PTFE Fuel Hose
Table of Contents [Hide]
1 Understanding PTFE Fuel Hose Construction and Key Properties
2 Assessing Fuel Type, Pressure, Temperature, and Flow Requirements
3 Selecting Hose Size, Lining, Reinforcement, and Fittings
4 Checking Compatibility, Safety Standards, and Intended Use
5 Verifying Installation, Routing, and Maintenance Needs

Understanding PTFE Fuel Hose Construction and Key Properties

PTFE fuel hose typically has a smooth inner liner, reinforcement braid, and sometimes a protective outer cover. The liner contacts the fuel and resists many chemicals, but compatibility should still be checked against the specific fuel and operating conditions. A stainless-steel braid can help manage pressure, while an outer cover may reduce abrasion from nearby components. Not every hose uses the same layers.

Some PTFE liners are electrically conductive to help dissipate static charge. Others are not. Check the hose specification rather than assuming. Fittings matter, too: a secure connection depends on compatible hose ends and correct assembly. The smallest mismatch can become the weak point.

Tips: Compare working-pressure and temperature ratings with your actual system. Allow for the hose’s minimum bend radius; a sharp turn near a fitting can strain the assembly. Check clearance around hot surfaces and moving parts. It is easy to focus on the liner and overlook installation space. That deserves a second look. After installation, inspect for kinks, abrasion, and loose connections according to the equipment maker’s guidance.

How to Choose the Right PTFE Fuel Hose — Construction and Key Properties
Selection Dimension Construction or Property What to Check Practical Selection Guidance
Inner tube PTFE (polytetrafluoroethylene) liner Confirm compatibility with the specific fuel, additives, cleaning fluids, and operating conditions. PTFE is known for broad chemical resistance, but compatibility should still be verified for the actual fluid and application.
Bore design Smooth-bore or convoluted-bore liner Compare flow requirements, flexibility, pressure rating, and ease of cleaning. A smooth bore provides a relatively unobstructed flow path and is often easier to clean. A convoluted bore can offer greater flexibility, but its geometry may affect flow and cleaning.
Outer reinforcement Commonly stainless-steel wire braid; other reinforcement may be used in application-specific designs. Check the hose assembly’s published working pressure, temperature limits, and resistance to external damage. Reinforcement helps the hose resist pressure and mechanical loads. The rating depends on the complete hose construction, size, end fittings, and assembly—not on the liner alone.
Temperature capability PTFE resin has a melting point of approximately 327°C; hose operating limits are lower and construction-dependent. Use the manufacturer’s stated continuous and intermittent temperature limits for the complete assembly. Some PTFE hose designs are specified for service over a broad range, commonly around −70°C to +260°C, but this is not a universal rating. Fittings, reinforcement, pressure, and exposure conditions can reduce the allowable range.
Pressure capability Determined by liner size and thickness, reinforcement, fittings, and assembly quality. Compare working pressure at the actual temperature with system pressure, including pressure spikes and applicable safety requirements. Do not infer a pressure rating from hose material or outside appearance. Use the documented rating for the exact hose assembly and operating conditions.
Electrical behavior Standard PTFE is electrically insulating; some hose designs use a conductive or static-dissipative liner. Determine whether the application requires electrical continuity or static-charge dissipation, and check the specified test method. Do not assume that a PTFE liner or metal braid alone provides the required electrical path. Follow the hose supplier’s installation and grounding guidance.
Size and flow Nominal inside diameter and fitting passage Match the hose bore and end connections to the required flow, pressure drop, and system interfaces. Check the actual bore through the hose and fittings. A reduced fitting passage can limit flow even when the hose has a larger nominal size.
Flexibility and routing Hose construction, diameter, length, and bend radius affect routing. Check the specified minimum bend radius and avoid twisting, kinking, or repeated bending at the fittings. Plan the route before selecting the assembly. Do not force a bend tighter than the hose’s published limit.
Fuel-system suitability Complete hose-and-fitting assembly intended for the relevant fuel service Verify documented fuel compatibility, pressure and temperature ratings, applicable requirements, and installation instructions. Choose an assembly specified for the fuel and service conditions rather than relying on a general claim that PTFE is chemically resistant.
Inspection and service life Hose, braid, fittings, and seals are all part of the assembly. Look for abrasion, corrosion, kinks, leakage, damaged braid, loose fittings, or signs of heat exposure; follow the prescribed inspection interval. Replace an assembly that is damaged or outside its specified service life. Inspection does not replace the supplier’s maintenance instructions.

Assessing Fuel Type, Pressure, Temperature, and Flow Requirements

Choose a PTFE fuel hose for the fluid it will actually carry, not just the word “fuel.” Gasoline blends, diesel, and oxygenated fuels can interact differently with hose materials and seals. Check the hose maker’s compatibility data for the exact fuel and any additives. Do not assume a PTFE liner makes every fitting or seal compatible. Small details matter. A seal that swells can cause a leak even when the hose liner is suitable.

Match the pressure rating to the system’s working pressure, including pump pulses and pressure spikes. Confirm that the rating still applies at the temperatures your vehicle or equipment may reach; heat can reduce a hose’s pressure capacity. Consider both hot engine-bay conditions and cold starts. For flow, compare the hose’s inside diameter with the required flow rate and total length. Tight bends, small fittings, and restrictive adapters can reduce delivery. Measure the route before ordering. A larger hose is not automatically better if its fittings do not match the system. If specifications seem unclear, pause and verify them with the hose supplier or a qualified technician. Guessing is not a test method. After installation, inspect for kinks, abrasion, and seepage under the conditions the hose is designed to handle.

How to Choose the Right PTFE Fuel Hose — Assessing Fuel Type, Pressure, Temperature, and Flow Requirements

Temperature reference: PTFE material is commonly listed for service across approximately −70°C to 260°C, but this is not a universal rating for a finished hose assembly. Confirm the hose and fitting temperature limits, pressure rating at operating temperature, fuel compatibility, and required flow capacity for your specific application.

Selecting Hose Size, Lining, Reinforcement, and Fittings

Hose size starts with the system, not the fitting. Match the inside diameter to required flow, then check pressure loss, bend radius, and clearance around hot components. A line that kinks behind an engine can restrict flow, even when its nominal size looks correct. Small details matter. The U.S. Department of Energy’s Alternative Fuels Data Center reports that E85 contains 51–83% ethanol, depending on season and location. Confirm the exact fuel blend before choosing a liner; compatibility should never be guessed.

PTFE offers broad chemical resistance, but the complete hose assembly still needs suitable temperature, pressure, and permeation ratings. Reinforcement matters too: braided stainless steel or other specified reinforcement can support pressure, while the published rating must apply to the assembled hose—not just its tube. SAE J30 provides fuel-hose performance requirements where its scope applies; it does not replace the assembly supplier’s ratings. I still check the bend radius in the actual installation. It is easy to miss.

Choose fittings that match the hose construction and connection geometry. Confirm the fitting’s material, sealing method, and assembly procedure, then inspect for sharp braid edges, twists, and side loads. A fitting that threads on is not automatically compatible. Keep the route supported, and leave enough slack for engine movement without letting the hose rub against brackets. DOE Alternative Fuels Data Center, “Ethanol Fuel Basics”; SAE J30, Fuel and Oil Hoses.

Checking Compatibility, Safety Standards, and Intended Use

How to Choose the Right PTFE Fuel Hose

Check compatibility with the exact fuel and additives in your system. PTFE resists many fuels, but that does not make every hose assembly suitable for every setup. Confirm the liner, outer cover, seals, and fittings are rated for the fuel, operating temperature, and pressure. A hose used with an ethanol blend, for example, still needs compatible end connections.

Looks can mislead.

Read the hose documentation for applicable safety standards and pressure ratings. Match the rating to the system’s working pressure, including expected pressure changes, rather than relying on a general “fuel hose” label. Check whether the stated rating applies to the complete assembly or only the hose itself. If approval requirements are unclear, ask the supplier or a qualified installer before fitting it.

Paperwork matters.

Consider the intended route and use. Measure the length, allow for engine movement, and respect the specified bend radius. A tight curve near a hot surface can stress the hose or its connections. Use fittings designed for the hose construction, and keep the line away from sharp edges and heat where possible.

Small details count.

For a road vehicle, verify that the selected assembly meets the requirements that apply to that vehicle and location. It is easy to focus on the PTFE liner and overlook the fittings; that deserves a second look.

Verifying Installation, Routing, and Maintenance Needs

A PTFE fuel hose is only as dependable as its installation. Match the hose and fittings as an assembly, and verify fuel compatibility, pressure limits, and temperature ratings against the manufacturer’s specifications. NFPA’s 2018 Vehicle Fires report estimates 171,500 U.S. highway-vehicle fires annually, averaged across 2014–2016. That figure does not identify hose failures, but it reinforces the value of careful fuel-system checks.

Route the hose without twisting or forcing a tight bend. Follow the specified minimum bend radius; keep the line clear of exhaust heat, sharp edges, and moving parts. Cushioned clamps can limit vibration and abrasion, but avoid clamping so tightly that the hose is pinched. A neat route on paper may still foul a bracket once components move. Check clearances with the engine and steering at their operating positions, where applicable.

Inspect the line with the system cool. Look for damp fittings, fuel odor, loose supports, crushed sections, or worn outer braid. Pay close attention where the hose passes through a panel or near a clamp. Visual checks have limits. If damage or leakage appears, stop using the vehicle and have the assembly assessed; a sound-looking exterior cannot confirm the liner’s condition. Recheck routing and support after service or nearby component changes.
